Part of: ASN-123C Tactical Navigation System
Overview

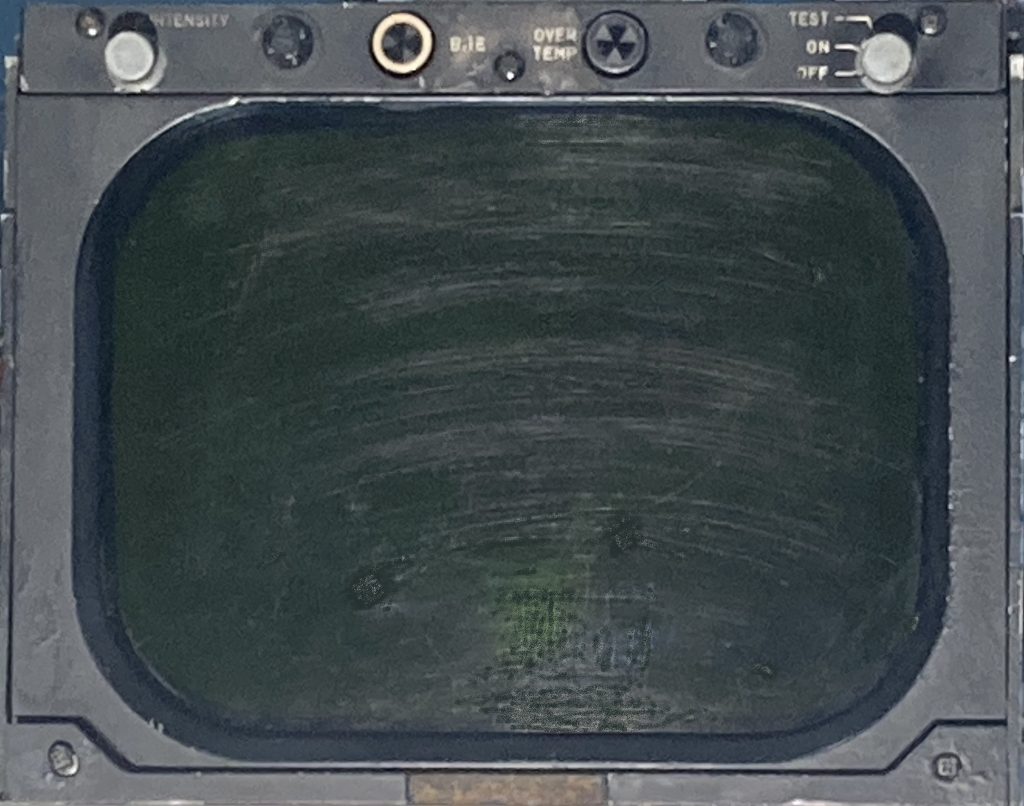

The Display Indicator serves as the visualization hub for the TACNAV (Tactical Navigation) system. It combines system navigation, operator mission inputs, and data from connected equipment into an integrated display.
Location
The Display Indicator is positioned at the TACCO’s (Tactical Coordinator’s) station.
Display Function
The TACNAV provides a true north-oriented map of the tactical environment, covering an area of 512 × 512 Nautical Miles (NM). Operators can select the centre point and adjust the display scale to focus on any part of this area.
Aircraft Operating Instructions Display Indicator
