  • AIRCRAFT OPERATING INSTRUCTIONS
  • PART 1 – GENERAL DESCRIPTION – AIRCRAFT AND SYSTEMS
  • Section 10 – Radio/Secure Voice
  • INTERPHONE-RADIO CONTROL SYSTEM (AN/AIC-14)

    • Passenger ICS

    Passenger ICS is provided by two cord sets and a cord assembly located above the troop seats (Figure 1-10-2). ICS with these cords is controlled through the hoist operator’s ICS control panels. The centre cord assembly also has a microphone button for ICS transmissions.

    An additional cord set is provided on the overhead bulkhead immediately aft of the cockpit. It is controlled by the co-pilot’s ICS control panel.

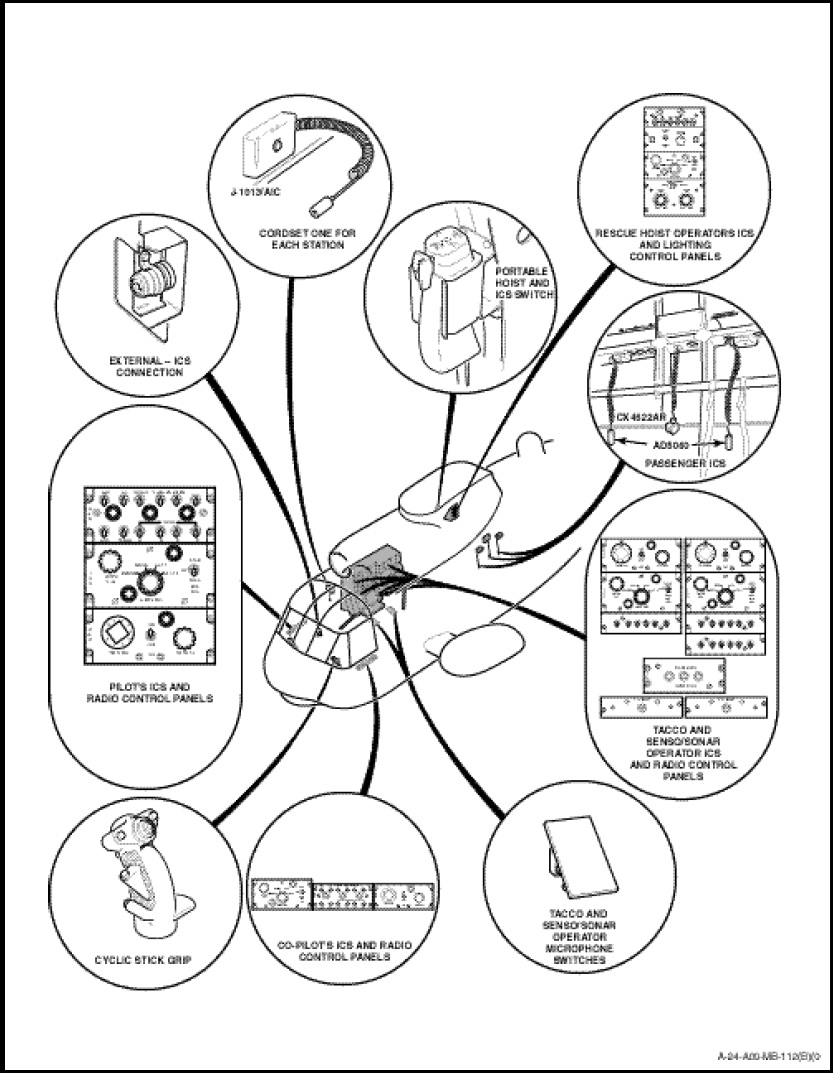

    Figure 1-10-2 Interphone-radio Control System
